Some of our products:

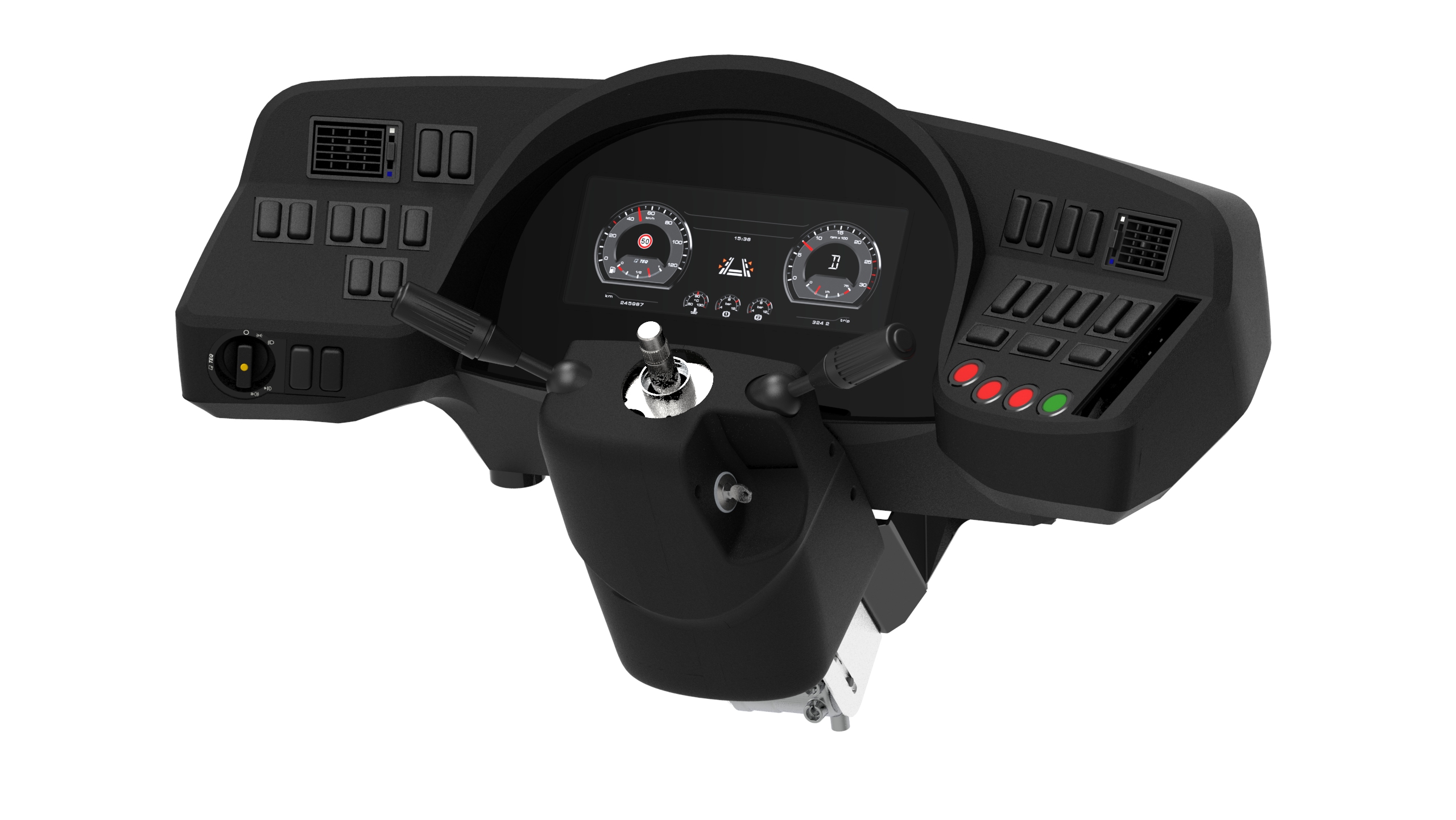

VDV directive compliant dashboard

Power supplynominal 24V
DisplayLCD 12.3″
Connectable camerasup to 4 (reverse gear, doors, ..)
HMI29 Keys – they can be personalized (of which: 1 for stopping brake and 4 for the doors)
Lights control rotary switch1
Slot for gearbox selector unit for automatic transmissionZF, Voith, Allison compliant
Left hand Stalk
Direction lights, windshield wipers controls, horn, high beams
Right hand Stalk
optional: retarder and/or cruise control
Steering columnBosch with multiple position adjusting movement, according to VDV234. Optional: with SAS interface
Ignition Key with safety lock on steering column
1 optional
Adjustable air flow grids
2
Blackbox feature
Yes
Inputs and Wake-up functionup to 57
Outputsup to 20
Real Time ClockYes
Interfaces3 CAN, 2 RS232, 2 RS485, 2 K-Line, 1 L-Line, 1 IBIS, USB
Audio featuresIntegrated micro-speaker.
optional: 1 speaker output; audio line out CH R/L
HSDPA / LTE / GPSoptional
Software IDETEQLab (IEC 61131)
Omologations and DirectivesR10, R118, VDV 234 (Verband Deutscher Verkehrsunternehmen)

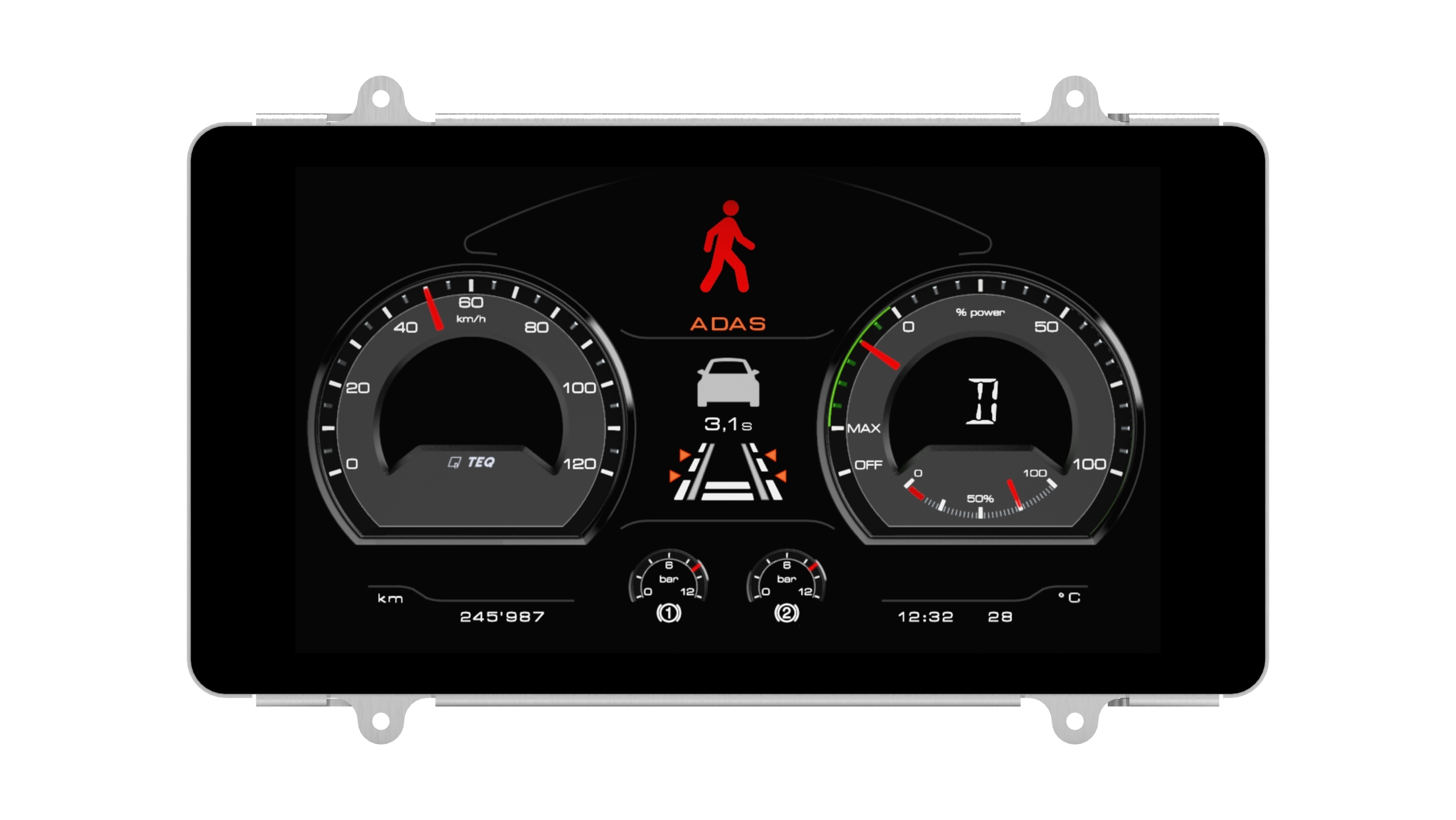

K30 - 12.3 Inches Master display with I/O

Power supplynominal 12-24 V
DisplayLCD 12.3″
Inputs and Wake-up function
19 of which: 4 with Wake-Up function
Outputs10
Power supplies for external devicesYes
BlackboxYes
Real Time ClockYes
Interfaces3 CAN, 2 RS232, 2 RS485, 2 K-Line, 1 L-Line, 1 IBIS, USB
Camera Inputsup to 4
MP3 PlayerOptional
Software IDETEQLab (IEC 61131)
Omologations and Directives
R10
Design/Mechanics
Customizable front frame
K30

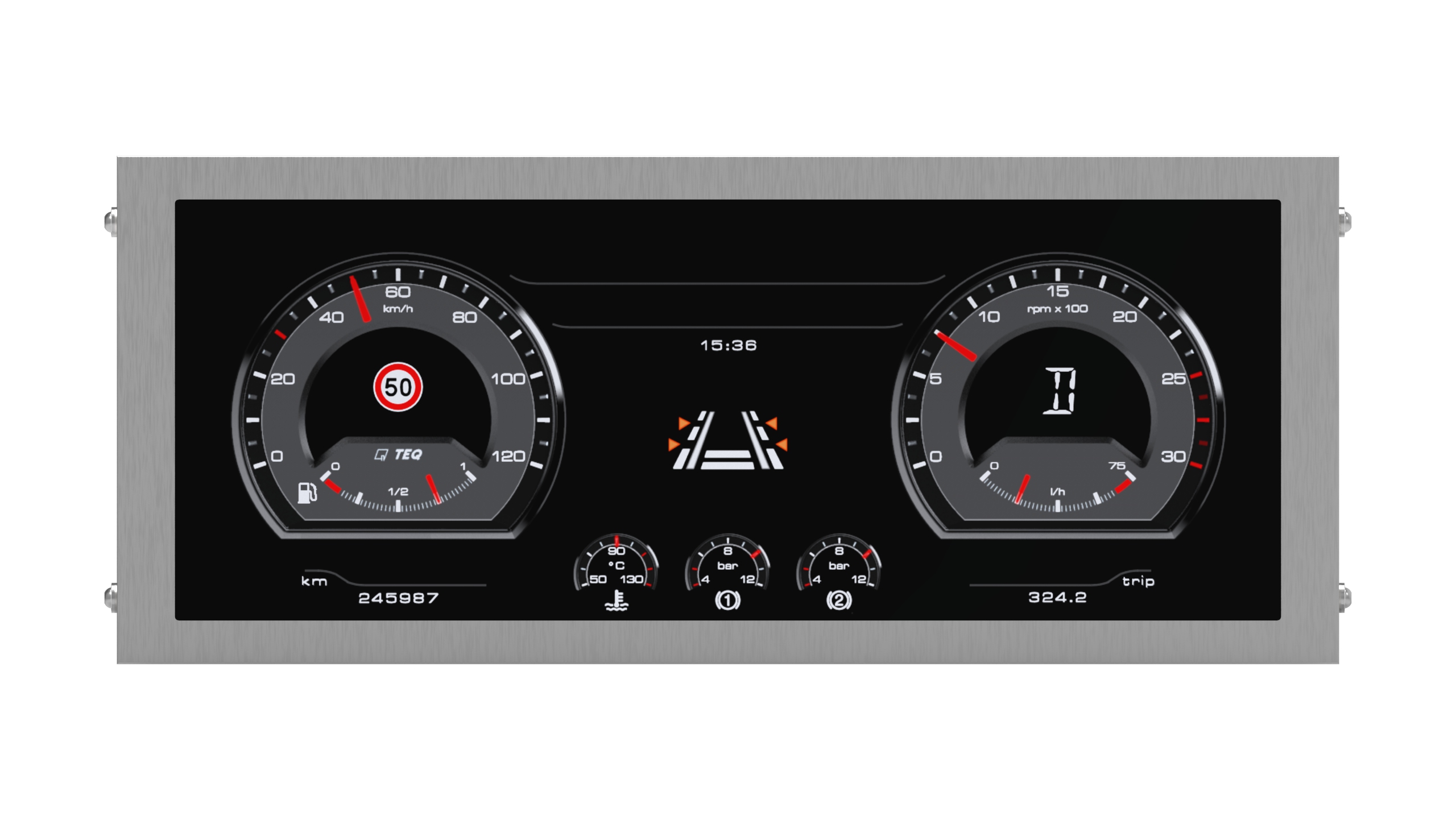

K30 - 10 Inches Master display with I/O

Power supply nominal 12-24 V
Display LCD 10″
Digital Inputs 12 (of which: 2 with Wake-Up function)
Three State Inputs 7
Configurable Input/Outputs 7 (of which: 2 with Wake-Up function)
Digital Outputs 3
Power supplies for external devicesYes
Data storage memoryYes
ClockYes
Interfaces3 CAN, 2 RS232, 2 RS485, 2 K Line, 1 IBIS
Camera Inputs up to 4
MP3 Player Optional
Software IDE TEQLab (IEC 61131)
K23

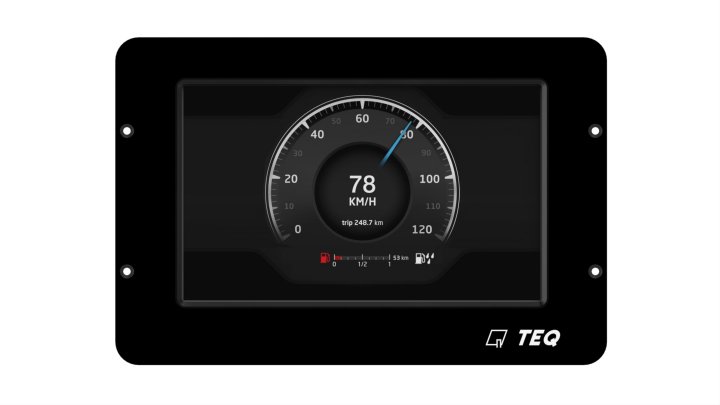

K23 - 7 Inches Master display with I/O

Power supply nominal 12-24 V
Display LCD 7″
optional: resistive touchscreen
Digital Inputs up to 14
Digital Outputs 3
Power supplies for external devices Yes
Blackbox
Yes
Real Time Clock Yes
Interfaces up to 3 CAN, 1 RS232, up to 2 RS485, up to 1 K-Line
Camera Inputs up to 2
MP3 Player Optional
Software IDE TEQLab (IEC 61131)
Omologations and Directives
R10
MADT

MADT and General Purpose Capacitive Touchscreen Display

Power supplyPOE or nominal 12-24 V
Display LCD 7″ capacitive touchscreen
Operating system
Linux
Digital Outputs2
Power supplies for external devices Yes
Interfaces Ethernet, WiFi, 4G LTE, Bluetooth, CAN, RS232, Rs485,K-Line, IBIS
Omologations and Directives
R10, IPXPT
K23_GLD

K23 - General Purpose easy-to-install display

Power supply nominal 12-24 V
Display LCD 7″
optional: resistive touchscreen
Digital Inputs 2 In-
Digital Outputs1 Out LS
Power supplies for external devices Yes
Blackbox
Yes
Real Time Clock Yes
Interfaces 2 CAN, 1 RS232, 1 K-Line
Software IDE TEQLab (IEC 61131)
Omologations and Directives
R10
K23_AVM

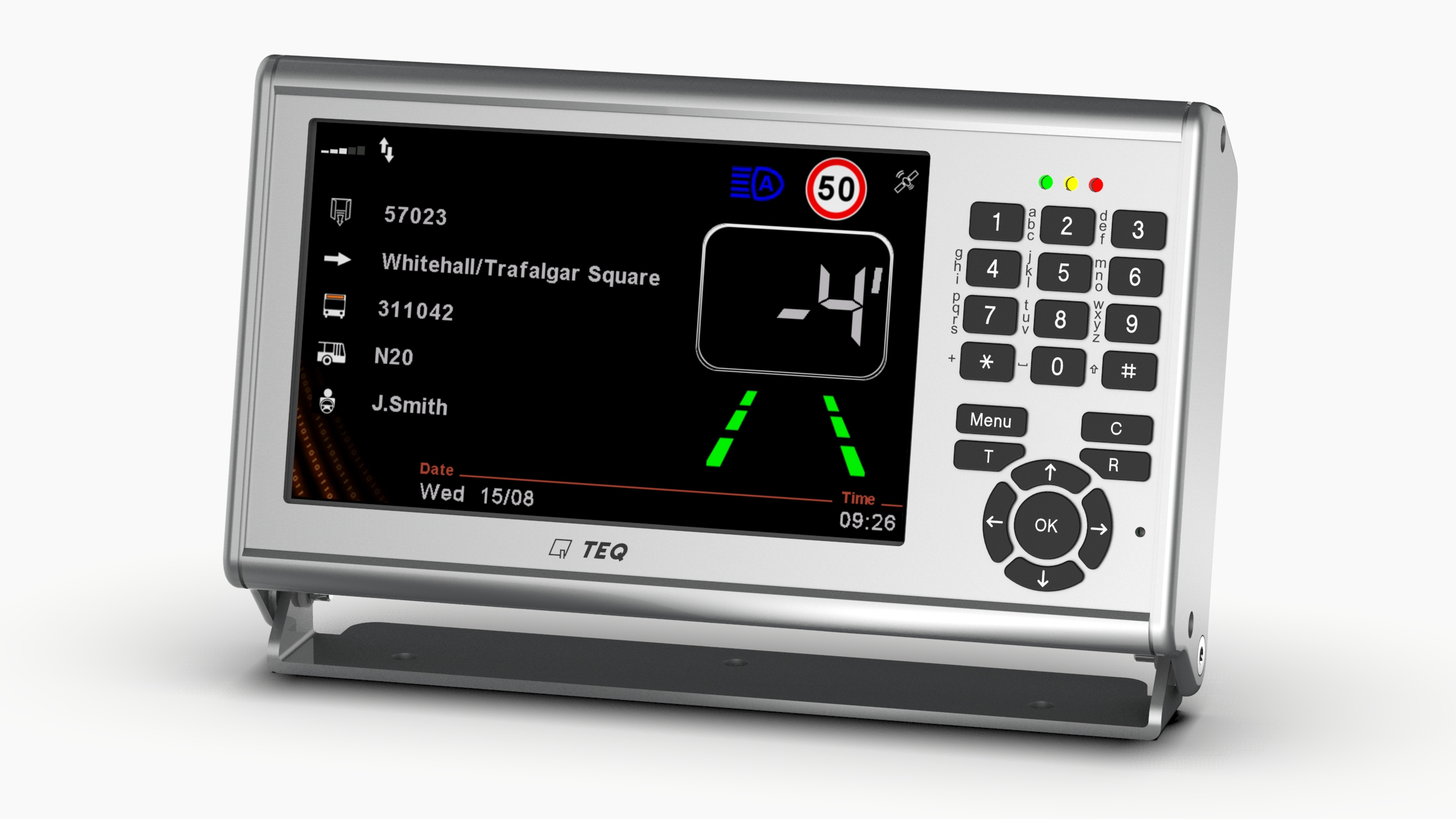

K23A - Display for AVM, ADAS & Fleet Management

Power supply12-24V
DisplayLCD 7″
optional: resistive touchscreen
Numeric KeypadYes
Interfaces1 CAN and 1 RS485 or 1 RS232
Camera Inputs1 (optional)
Easy-to-install with multiple mounting optionsYes
Omologations and Directives
R10

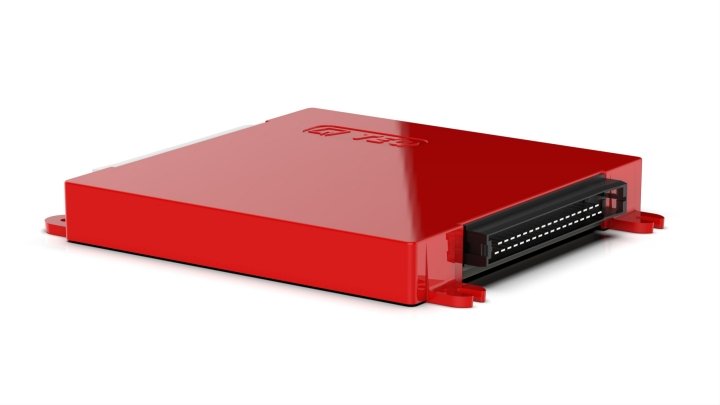

A26

A26 - I/O Control unit

Power supply nominal 12-24 V
Inputs 28
Current inputs 2
Positive outputs 25 (of which: 8 can be used to manage frequency signals)
Wake-up inputs 2 – programmable
Memory Yes
Interfaces (full version) 2 CAN, 1 RS232
A27

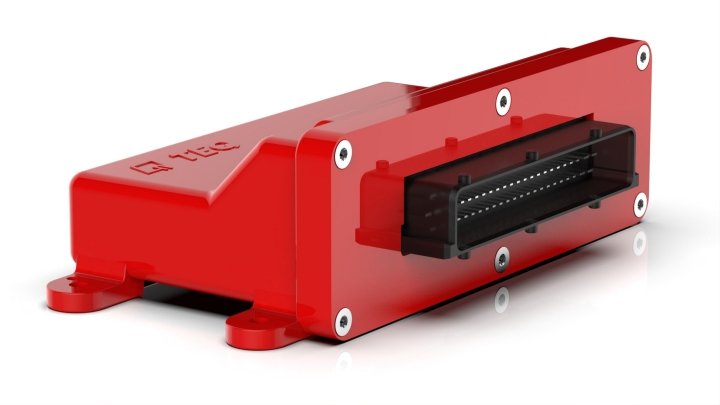

A27 - I/O Control unit

Power supply 12-24V
Digital inputs 9 (of which: 7 can be used to manage frequency signals)
Analog inputs 14
Positive outputs 24
Positive/Negative outputs (1/2 H bridge) 4 (or 2 as complete “H” bridge)
Outputs for 5V sensors power supply 1
Memory Yes
Interfaces (full version) 2 CAN, 1 RS232, 1 K-line
A27

A4D - Doors and ramps Control Unit

Power supply12-24V
Digital inputs6
Analog/digital inputs12
Negative outputs6
Positive/Negative outputs (1/2 H bridge)4 (or 2 as complete “H” bridge)
Outputs for 5V sensors power supply1
MemoryYes
Interfaces (full version)1 CAN, 1 RS232
A3J

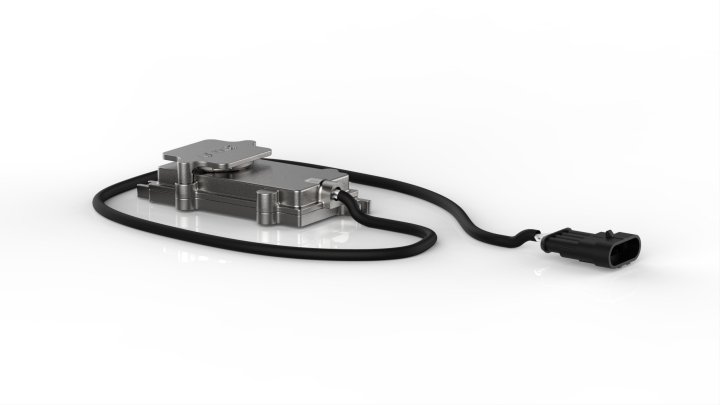

A3J - Natural Gas Sensor

Power supply 12-24V
Alarm threshold 20% e 50% LEL
Positive output 1
Interfaces with supervision control unit1
Internal temperature sensor1
Anomalies MemoryYes
Max current absorption33 mA @ 24V
66 mA @12V
Operating temperature -40°C / +100°C
IP protection IP65

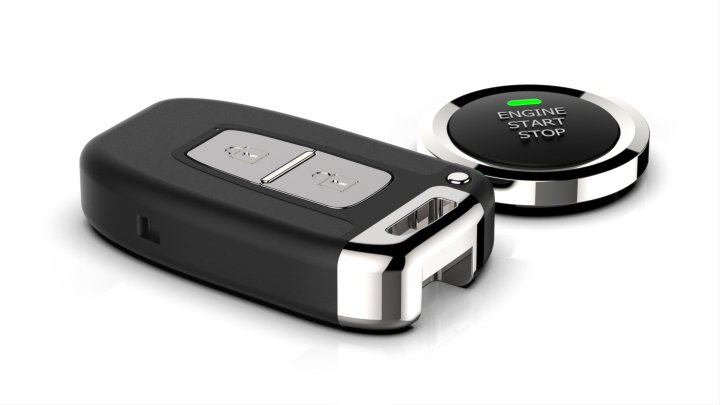

Samrt-Key

A32 - Smart Key

Passive Entry Yes
Passive Start Yes
RFID 125 KHz Yes (Dead Key FOB Start)
FOB Buttons 2
FOB Blade Yes
Transmission of FOB’s battery level Yes
Number of vehicle antennas Depending on functions and vehicle configuration
Customizable Yes

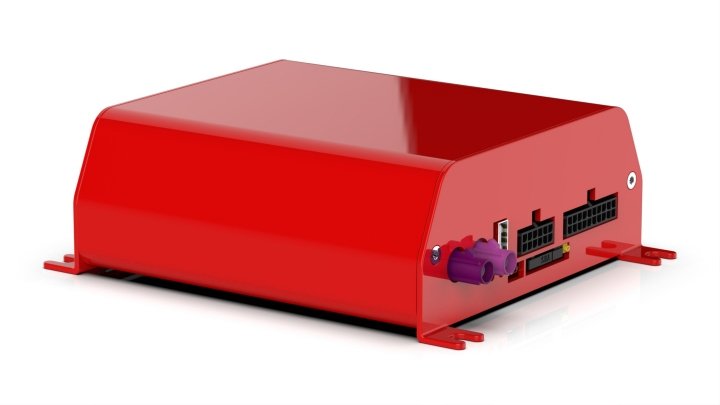

A28

A28 - Diagnostic Gateway - FMS Interface

Power supplynominal 12-24 V(8..32 V)
Digital inputs3
Analog inputs3
Outputs3
Memory512 MB
Interfaces3 CAN, 2 RS232, 1 RS485, 1 IBIS, 1 K-Line, USB
Accelerometer (triaxial) / GyroscopeYes
A28

A28 - Fleet Management On Board Computer

Power supply nominal 12-24 V(8..32 V)
GPS 32 channels
Modem HSDPA (optional Voice and LTE)
Digital inputs 3
Analog/digital inputs3
PT1001
Negative outputs3
Data storage memory512 MB
Interfaces 2 CAN, 1 RS232, 1 RS485, 1 IBIS, 1 K-Line, USB
Accelerometer (triaxial) / Gyroscope Yes

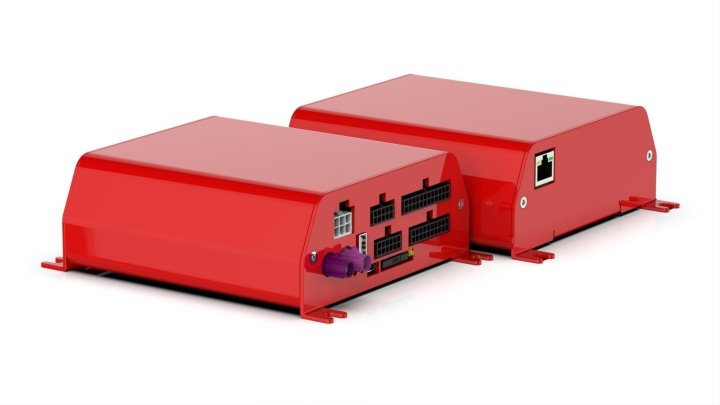

K29

K29 - Fleet Management On Board Computer Plus

Power supply nominal 12-24 V(8..32 V)
GPS 32 channels
Modem HSDPA (optional Voice and LTE)
Digital inputs 18 (optionally up to 24)
Analog/digital inputs 3
PT1001
Negative outputs3
Positive outputs2 (optionally up to 5)
Data storage memory 512 MB
Interfaces 3 CAN, 2 RS232, 2 RS485, 1 IBIS, 1 K-Line, USB
Accelerometer (triaxial) / Gyroscope Yes
Audio MP3 and Text-to-speech
Bluetooth Yes

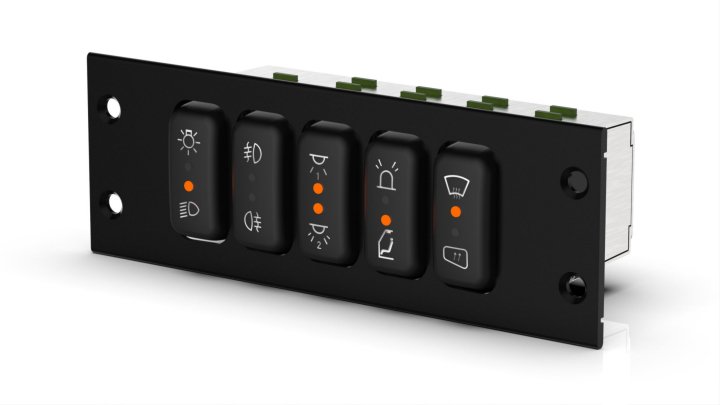

K1W

K1W - 5 Switches keyboard

Power supply 12-24V
Keys 5 (of which: 2 with Wake-Up function in the master module)
Position per key 2 or 3 according to your choice
Warning lights per each key up to 2
Keys’ backlighting Yes
Customizable graphicsYes
Master module digital inputs 3 (with Wake-Up function, if requested)
Master module interfaces 1 CAN, 1 bus for Slave modules
Slave module interfaces 1 bus
Maximum number of keyboards that can be connected to 1 master 7
A34

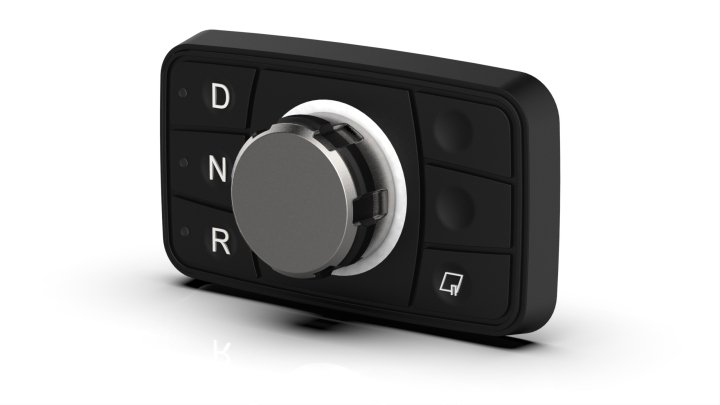

A34 - CAN Control Knob

Power supply 12-24V
Keys6, each with up to 3 multi-coloured LED
Customizable graphicsYes
Encoder1, with pushbutton
Keys’ and Encoder backlighting Yes
Interfaces 1 CAN
A29

A29 - I/O Module

Power supplynominal 12-24 V(8..32 V)
Three-state inputs16
Digital outputs5
Interfaces1 CAN
