CCS Combined Charging System & OppCharge
EV Charging Solutions

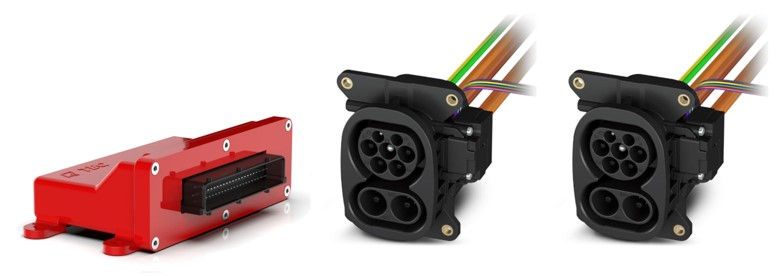

TEQ CCS ECU can drive up to two plugs
TEQ CCS Combined Charging System is a “off the shelf” solution for EV vehicles. It can manage one or two combo plugs (left and right side of the vehicle, particularly useful for city buses) and can be interfaced with every kind of BMS Battery Management System.
Main Charging Features
EVSE Electric Vehicle Supply Equipment – Charging Station Communication
- PLC Power Line Communication Management
- ISO 15118 and DIN 70121 protocols
- VDV 261
- Better energy efficiency & range
- Charge scheduling
- Preconditioning
BMS Battery Management System Communication
- J1939 (CAN)
- Customized protocols
Plug Management
- CCS1 & CCS2
- E-Lock
- Poles temperature control
Contactors Management
- Feed-back (auxiliary contact)
RGB LED management
Wake UP
- PP Proximity Pilot
- Charging Door Opening
Extra Features
Log on SD Card
- Protocols log
- Start/Stop Charge
- Charged Energy
- Number of charges
- Temperatures
- Errors, Warnings, Alerts
- EVSE Data and ID
- .. data on request

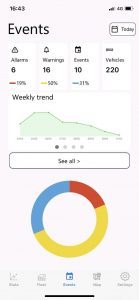

Remote Diagnostic
- Optional GSM connection
- Log Download
- Data Analysis
OppCharge

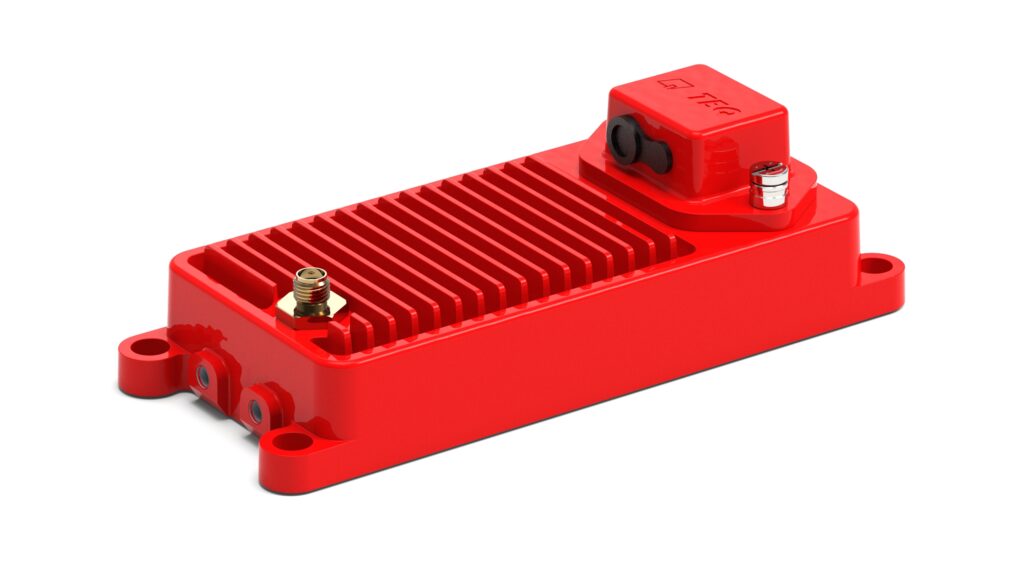

OppCharge Communication Control Unit
The onboard ECU is specifically designed to manage automated OppCharge fast-charging operations for electric buses.
It interfaces directly with the inverted pantograph, communication antenna (Wi-Fi), and the Battery Management System (BMS) to ensure safe, efficient, and fully automated charging sequences.
Acting as the central intelligence of the OppCharge process, the unit handles all command and control signals exchanged between the vehicle and the charging infrastructure, coordinating the entire charging cycle — from connection detection to charge completion.
When integrated with the TEQ CCS ECU, it ensures optimized battery management and interoperability across different charging systems, providing a unified, reliable communication hub between the vehicle, the pantograph, and the charging station.
